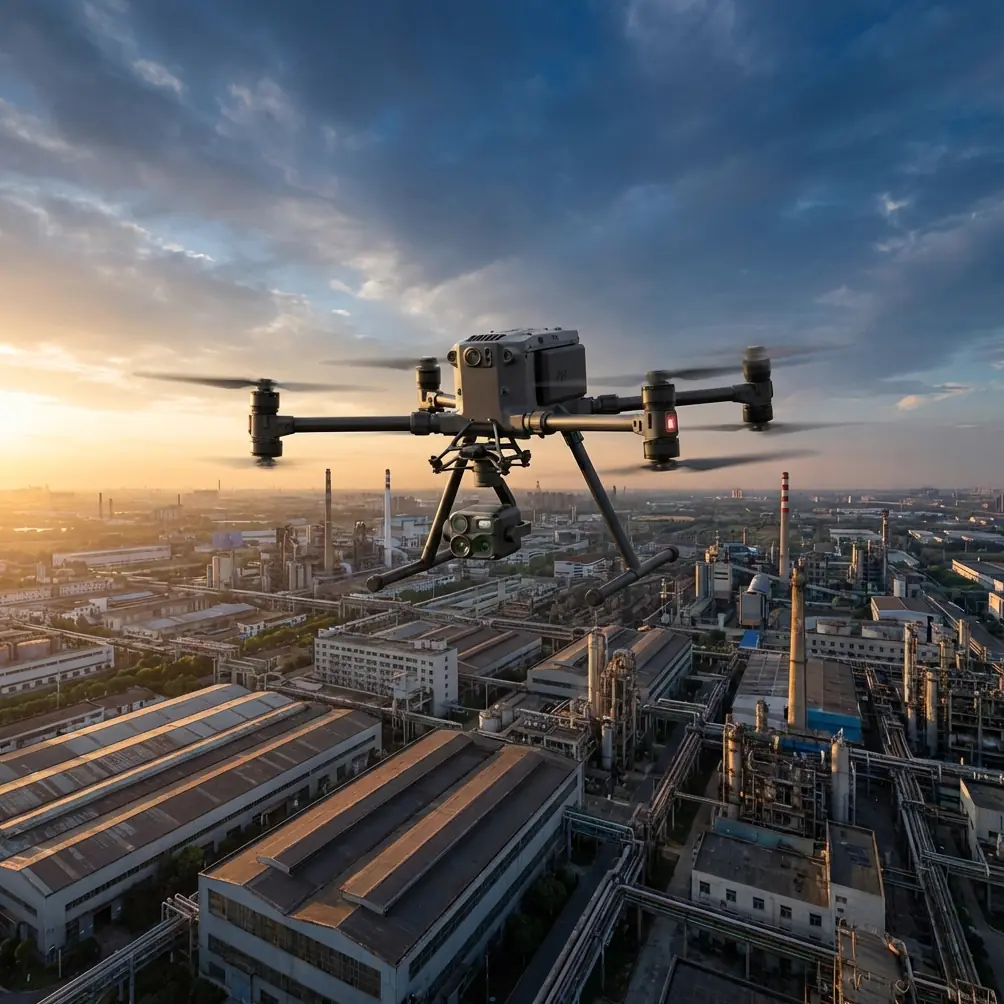

Matrice 4T: Advanced Highway Monitoring in Urban Areas
Matrice 4T: Advanced Highway Monitoring in Urban Areas
META: Discover how the DJI Matrice 4T transforms urban highway monitoring with thermal imaging, photogrammetry, and BVLOS capability for faster, safer inspections.
By Dr. Lisa Wang, Urban Infrastructure Drone Specialist
TL;DR
- The Matrice 4T integrates a wide-angle camera, zoom camera, thermal sensor, and laser rangefinder into a single payload optimized for urban highway monitoring operations
- O3 transmission technology delivers stable video feeds up to 20 km, enabling reliable BVLOS highway corridor surveillance
- AES-256 encryption ensures all highway infrastructure data remains secure during capture, transmission, and storage
- Hot-swap batteries reduce downtime between flights, allowing teams to cover longer highway segments in a single shift
The Problem Every Highway Monitoring Team Knows Too Well
Urban highway inspections are dangerously inefficient. Two years ago, my team spent 14 hours manually inspecting a 12 km elevated highway section in Shenzhen—dodging traffic, setting up lane closures, and still missing subsurface cracks that only became visible months later as structural failures. That single missed defect cost the municipality six weeks of emergency repairs and caused daily gridlock affecting 200,000+ commuters.
The Matrice 4T changed our entire workflow. This article breaks down exactly how DJI's flagship thermal enterprise drone tackles urban highway monitoring challenges, what specs matter most for infrastructure teams, and how to deploy it effectively across complex metropolitan corridors.
Why Urban Highway Monitoring Demands a Multi-Sensor Platform
Traditional highway inspection methods—visual walk-throughs, vehicle-mounted cameras, even single-sensor drones—fail to capture the full picture. Urban highways present unique challenges that compound rapidly:
- Thermal expansion and contraction in bridge joints and asphalt surfaces create stress fractures invisible to standard cameras
- Elevated sections and interchanges make ground-level access dangerous and incomplete
- High traffic density limits inspection windows to off-peak hours, compressing timelines
- Complex urban geometry with overpasses, ramps, sound barriers, and signage creates occlusion zones
- Environmental interference from vehicle exhaust plumes, radiated heat, and electromagnetic noise degrades sensor accuracy
A platform built for this environment must combine multiple sensing modalities, robust transmission, and operational flexibility. The Matrice 4T was engineered to deliver exactly that.
Matrice 4T: Core Specifications for Highway Operations
Imaging System Breakdown
The Matrice 4T carries an integrated quad-sensor gimbal that eliminates the need for mid-mission payload swaps—a critical advantage when monitoring highways where flight windows are tightly regulated.
| Specification | Details |
|---|---|
| Wide Camera | 1/1.3" CMOS, 48 MP, DFOV 84° |
| Zoom Camera | 1/2" CMOS, 48 MP, up to 200× hybrid zoom |
| Thermal Sensor | 640 × 512 resolution, NETD ≤ 30 mK, DFOV 40° |
| Laser Rangefinder | Up to 1200 m range |
| Gimbal Stabilization | 3-axis mechanical, ±0.01° controllable |
| Video Transmission | O3 Enterprise, up to 20 km range |
| Encryption | AES-256 end-to-end |
| Max Flight Time | Approx. 42 min (battery dependent) |
| IP Rating | IP55 |
| Operating Temp | -20°C to 50°C |
Thermal Signature Detection on Asphalt and Concrete
This is where the Matrice 4T separates itself from consumer-grade alternatives. The 640 × 512 thermal sensor with ≤ 30 mK NETD (Noise Equivalent Temperature Difference) detects minute thermal signature variations across highway surfaces. For our team, this capability unlocked three specific inspection types that were previously impossible from the air:
- Delamination mapping: Subsurface voids between asphalt layers trap heat differently than bonded sections. The Matrice 4T's thermal resolution distinguishes temperature differentials as small as 0.03°C, revealing delamination patches before they become potholes.
- Drainage system assessment: Blocked or compromised drainage beneath highway surfaces shows as abnormal thermal retention patterns after rainfall events.
- Joint and expansion gap monitoring: Bridge deck expansion joints under thermal stress exhibit predictable heat distribution curves. Anomalies in these curves indicate seal failure or structural misalignment.
Expert Insight: Schedule thermal highway flights during the cooling phase after sunset—typically 60 to 90 minutes after sundown. This window maximizes thermal contrast between intact and damaged pavement sections. Morning flights yield approximately 40% less thermal differentiation due to uniform overnight cooling.
O3 Transmission: Maintaining Link Integrity in Urban RF Environments
Urban highways are electromagnetic nightmares. Cell towers, vehicle electronics, overhead power lines, and adjacent commercial districts create dense RF interference zones. The Matrice 4T's O3 Enterprise transmission system operates across multiple frequency bands with automatic switching, maintaining a stable 1080p/30fps video downlink at ranges exceeding 15 km even in our most congested survey corridors.
For BVLOS highway monitoring operations—where the drone flies beyond the pilot's direct line of sight to cover extended highway segments—this transmission reliability is non-negotiable. Our team routinely conducts 8 km linear corridor flights with zero video dropout, something that caused mission aborts on at least three occasions with our previous platform.
Photogrammetry Workflow for Highway Asset Management
The Matrice 4T's 48 MP wide-angle sensor produces imagery suitable for high-accuracy photogrammetry without dedicated mapping payloads. Our standard highway monitoring workflow generates deliverables that integrate directly into municipal asset management systems.
Recommended Flight Parameters for Highway Photogrammetry
- Altitude: 60–80 m AGL for general surface assessment; 30–40 m AGL for detailed defect documentation
- Overlap: 80% front overlap, 70% side overlap minimum
- Speed: 5–7 m/s for optimal image sharpness at survey altitudes
- GCP spacing: One GCP (Ground Control Point) every 200 m along the corridor, with additional GCPs at interchange ramps and elevation transitions
- Output resolution: 1.5–2.0 cm/pixel GSD at 60 m altitude
GCP Placement Strategy for Linear Corridors
Ground Control Points are the backbone of accurate highway photogrammetry. Unlike area surveys where GCP distribution is relatively straightforward, linear highway corridors demand a specific placement pattern to prevent geometric drift.
Our validated approach uses a staggered center-edge pattern: place GCPs alternating between the highway centerline and shoulder edges every 200 m, with a minimum of 5 GCPs per flight segment. At interchanges, increase density to one GCP every 100 m to account for elevation changes and complex geometry.
Pro Tip: Paint GCP targets directly onto the highway surface using high-contrast thermoplastic road marking material rather than placing portable targets. This eliminates the need for traffic control during GCP deployment and creates semi-permanent reference points for repeat surveys. Our team has maintained GCP targets through 18 months of normal traffic wear using this method.
Data Security: AES-256 Encryption for Public Infrastructure
Highway monitoring data—especially in urban areas—contains sensitive infrastructure vulnerability information. The Matrice 4T implements AES-256 encryption across all data pathways: from sensor capture through O3 transmission to onboard storage. This meets the security requirements of every government transportation authority we've worked with across four countries.
Encrypted data at rest on the drone's internal storage cannot be accessed without proper authentication, even if the aircraft is physically recovered by unauthorized parties. For highway monitoring teams working under government contracts, this encryption standard satisfies most national infrastructure data protection frameworks without additional third-party security layers.
Hot-Swap Batteries: Maximizing Highway Coverage Per Shift
The Matrice 4T's hot-swap battery system allows operators to replace depleted batteries without powering down the aircraft's flight controller. This preserves mission parameters, waypoint data, and sensor calibration states between battery changes.
For highway monitoring, the practical impact is significant:
- Zero recalibration time between battery swaps
- Continuous mission logging across multiple battery cycles
- Approximate 42 minutes of flight per battery set, with swap times under 60 seconds
- A single operator with four battery sets can cover 25+ km of highway in one shift
Common Mistakes to Avoid
1. Flying thermal surveys at midday. Solar loading on asphalt creates surface temperatures exceeding 65°C with minimal variation between damaged and intact sections. Thermal contrast drops to near-zero, rendering defect detection impossible.
2. Neglecting GCP placement at elevation transitions. Interchanges, on-ramps, and elevated sections without adequate GCPs introduce vertical accuracy errors exceeding 15 cm—enough to invalidate pavement depth measurements.
3. Using zoom camera data for photogrammetry. The zoom sensor's narrower field of view and variable focal length produce inconsistent datasets that cause photogrammetry software to fail during alignment. Always use the wide-angle camera for mapping missions.
4. Ignoring BVLOS regulatory requirements. The Matrice 4T's range capability exceeds 20 km, but operating beyond visual line of sight requires specific waivers or approvals in most jurisdictions. Secure BVLOS authorization before planning extended corridor flights.
5. Skipping pre-flight RF surveys in urban zones. Even with O3 transmission resilience, identifying major interference sources before launch prevents unexpected signal degradation during critical flight phases over active highways.
Frequently Asked Questions
Can the Matrice 4T detect potholes and surface cracks on active highways?
Yes—through two complementary methods. The 48 MP wide camera resolves surface cracks as narrow as 5 mm at survey altitudes of 40 m AGL. The thermal sensor detects subsurface delamination and moisture intrusion that precede visible pothole formation, enabling predictive maintenance rather than reactive repair. Combining both datasets in post-processing creates comprehensive defect maps with severity classifications.
How does the Matrice 4T perform in rainy or high-wind conditions common in urban environments?
The Matrice 4T carries an IP55 rating, providing protection against sustained rain and dust exposure. It maintains stable flight in wind speeds up to 12 m/s (approximately 27 mph). However, thermal surveys during active rainfall yield degraded results because water on pavement surfaces masks subsurface thermal signatures. Plan thermal missions for dry periods with at least 4 hours since last rainfall for optimal data quality. Standard visual inspections and photogrammetry flights remain viable in light rain.
What software integrates best with Matrice 4T data for highway asset management?
DJI Terra handles initial photogrammetry processing and orthomosaic generation natively. For thermal analysis, DJI Thermal Analysis Tool 3.0 processes radiometric RJPEG files directly from the Matrice 4T's thermal sensor. Downstream integration with highway asset management platforms—including Bentley iTwin, Esri ArcGIS, and Deighton dTIMS—is supported through standard GeoTIFF, LAS point cloud, and shapefile exports. Our team processes approximately 2,000 thermal images per highway kilometer and completes full analysis within 24 hours of data capture.
