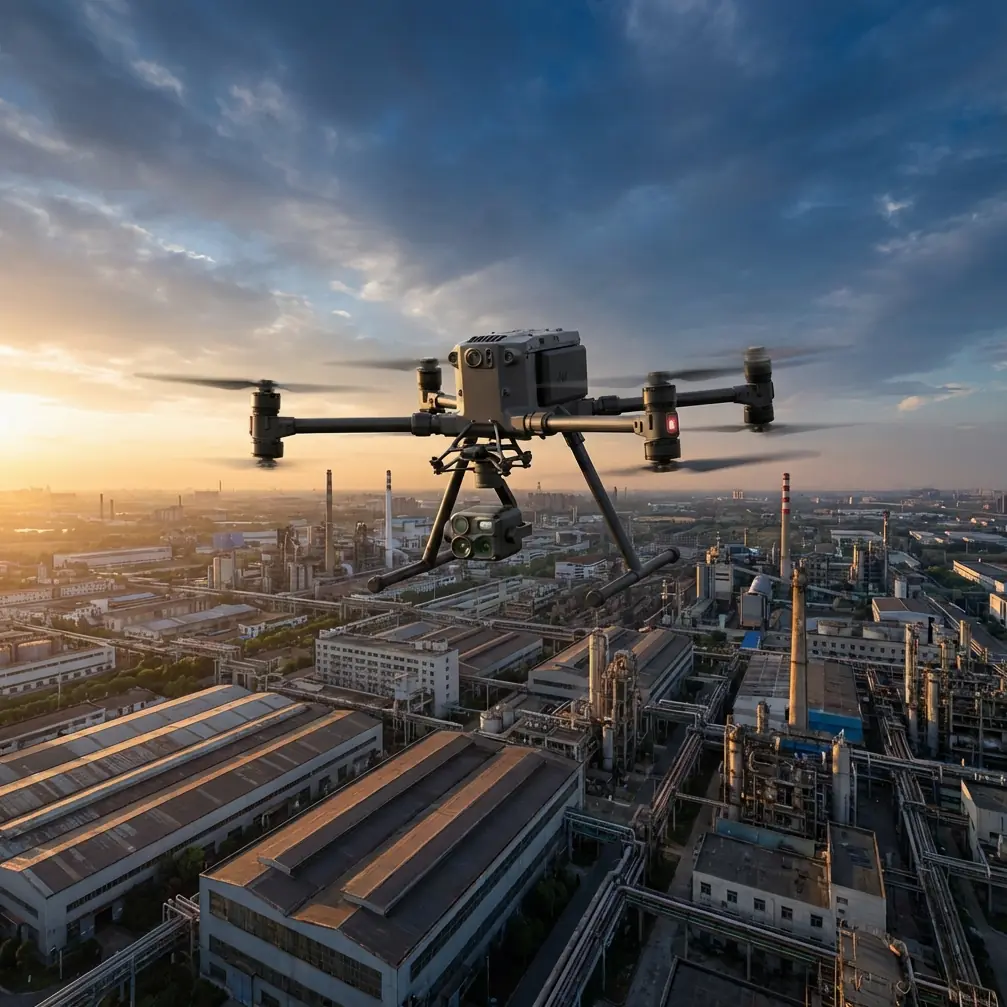

Matrice 4T Monitoring Tips for Complex Venues

META: Learn expert Matrice 4T monitoring tips for complex terrain venues. Master thermal signature analysis, GCP setup, and BVLOS workflows to maximize inspection efficiency.

By Dr. Lisa Wang, Drone Operations Specialist

Monitoring large venues across rugged, uneven terrain pushes most enterprise drones to their limits. The DJI Matrice 4T combines a tri-sensor gimbal with O3 transmission at ranges exceeding 20 km, giving operators the edge they need to cover stadiums, mining sites, solar farms, and sprawling industrial complexes without signal dropout. This tutorial walks you through the exact workflows, settings, and strategies that separate mediocre venue monitoring from truly actionable aerial intelligence.

TL;DR

Configure thermal palettes and gain settings before launch to capture reliable thermal signature data across mixed surfaces like concrete, metal roofing, and vegetation.
Deploy Ground Control Points (GCPs) strategically so your photogrammetry outputs maintain sub-centimeter accuracy even on slopes and multi-level structures.
Leverage the M4T's hot-swap batteries to sustain continuous monitoring sessions of 45+ minutes without landing—a critical advantage over the Autel EVO Max 4T, which requires a full shutdown for battery changes.
Plan BVLOS corridors using the built-in ADS-B receiver and AES-256 encrypted links to maintain regulatory compliance and data security throughout every flight.

Why the Matrice 4T Excels at Venue Monitoring

The Multi-Sensor Advantage

Most competing platforms force operators to choose between a high-resolution visual camera and a radiometric thermal sensor. The Matrice 4T eliminates that trade-off entirely. Its gimbal integrates:

A 1/1.3-inch CMOS wide camera with 56 MP resolution
A 640 × 512 radiometric thermal sensor with ≤30 mK sensitivity (NETD)
A zoom camera offering up to 200× hybrid zoom
A built-in laser rangefinder accurate to ±0.3 m at 1,500 m

This means you capture visual detail, thermal signature data, and precise distance measurements in a single pass—no payload swaps, no second flights, no guesswork.

How It Compares to Competitors

When stacked against the two closest enterprise alternatives, the M4T's specifications reveal clear advantages for complex venue work:

Feature	DJI Matrice 4T	Autel EVO Max 4T	Skydio X10
Thermal Resolution	640 × 512	640 × 512	320 × 256
Thermal Sensitivity (NETD)	≤30 mK	≤40 mK	≤50 mK
Max Transmission Range	20 km (O3)	15 km	8 km
Hot-Swap Batteries	Yes	No	No
Encryption Standard	AES-256	AES-128	AES-256
Max Flight Time	38 min	35 min	35 min
Zoom Capability	200× hybrid	160× hybrid	50× hybrid

The 30 mK NETD rating stands out because at venues with complex material compositions—concrete grandstands next to glass facades next to HVAC units—you need the sensor to differentiate thermal signatures separated by fractions of a degree. The Skydio X10's 50 mK simply cannot resolve those subtle differences reliably.

Step-by-Step: Monitoring a Complex Venue

Step 1 — Pre-Mission Site Analysis

Before you power on the aircraft, study the venue using satellite imagery and any available CAD drawings. Identify:

Elevation changes (terraced seating, multi-story structures, sloped terrain)
Reflective surfaces that may cause thermal artifacts (glass, polished metal)
RF-dense zones where Wi-Fi routers, cellular towers, or broadcast equipment could interfere with control links
No-fly zones and restricted airspace layers within the venue boundary

Mark these on your flight planning software. The Matrice 4T integrates with DJI FlightHub 2, which allows you to import KML/KMZ files and overlay hazard zones directly on the mission map.

Pro Tip: Always conduct your site analysis during the same time window you plan to fly. Thermal behavior changes dramatically between morning and afternoon due to solar loading on building surfaces. A steel roof that reads 42°C at 2 PM may only read 18°C at 7 AM, completely altering your anomaly thresholds.

Step 2 — Deploying Ground Control Points (GCPs)

Accurate photogrammetry depends on GCPs. For venue monitoring across complex terrain, follow this placement protocol:

Use a minimum of 5 GCPs for areas under 10 hectares; add 2 additional GCPs per extra 5 hectares
Place GCPs at the highest and lowest elevation points within the survey area
Ensure at least 3 GCPs are visible in every photo cluster
Measure each GCP with an RTK GNSS receiver at ≤2 cm horizontal accuracy
Use high-contrast checkerboard targets sized at minimum 60 cm × 60 cm so they remain visible from altitudes of 80–120 m AGL

The M4T's onboard RTK module can achieve 1.5 cm + 1 ppm positioning accuracy when connected to a D-RTK 2 base station or NTRIP network. This pairs with your GCPs to produce orthomosaics and 3D models with repeatable, survey-grade precision—critical when you need to track structural changes between quarterly inspections.

Step 3 — Configuring Thermal Settings for Mixed Materials

Venue environments present a patchwork of emissivity values. A single emissivity setting will produce inaccurate temperature readings. Configure the M4T's thermal sensor with these parameters:

Emissivity: Set per material zone—0.95 for concrete, 0.90 for painted metal, 0.85 for oxidized steel, 0.92 for asphalt
Reflected Temperature: Measure ambient reflected temperature using a crumpled-then-flattened piece of aluminum foil and input the value manually
Gain Mode: Use High Gain for subtle anomaly detection (HVAC leaks, insulation voids); switch to Low Gain when surveying high-temperature equipment like boilers or electrical switchgear exceeding 150°C
Palette: Start with Ironbow for general inspection, switch to White Hot for documentation and reporting clarity

Expert Insight: Many operators overlook reflected temperature compensation, and this single oversight can introduce errors of 5–8°C on reflective surfaces. On a venue with extensive glass curtain walls, that error margin can turn a normal reading into a false-positive anomaly—wasting hours of follow-up investigation. Spend the extra 3 minutes calibrating reflected temperature before every flight.

Step 4 — Planning Flight Paths for BVLOS Operations

Complex venues often extend beyond visual line of sight. The Matrice 4T's O3 transmission system and AES-256 encrypted data link make it one of the few platforms reliable enough for approved BVLOS corridors. Here's how to plan effectively:

Define your BVLOS corridor width at 100 m on either side of the flight path
Set contingency waypoints every 500 m where the aircraft will loiter if signal degrades below -85 dBm
Program automatic RTH (Return to Home) if link loss exceeds 30 seconds
Activate the onboard ADS-B receiver and set manned aircraft proximity alerts at 1,000 m horizontal / 300 m vertical
File all required BVLOS waivers or SORA assessments with your national aviation authority at least 30 days before the operation

The AES-256 encryption deserves special attention for venue work. Stadiums, government buildings, and critical infrastructure sites often require proof that your data stream cannot be intercepted. The M4T's encryption standard meets FIPS 140-2 expectations, which simplifies compliance paperwork considerably.

Step 5 — Executing Continuous Flights with Hot-Swap Batteries

This is where the Matrice 4T creates significant separation from every competitor on the market. Its hot-swap battery system allows you to replace one battery while the aircraft continues operating on the other. In practice, this means:

Zero downtime between battery swaps during extended monitoring sessions
Effective mission endurance of 45+ minutes with a single operator managing swap cycles
No mission data fragmentation—your photogrammetry dataset remains continuous, eliminating stitching errors at flight-segment boundaries

For a venue monitoring session covering a 25-hectare industrial complex with 3 elevation tiers, this hot-swap capability typically saves 20–25 minutes per mission compared to platforms that require landing, powering down, swapping, rebooting, and recalibrating.

Common Mistakes to Avoid

1. Flying at a single altitude across varied terrain. Multi-level venues demand altitude adjustments. Use the M4T's terrain follow mode with a DEM (Digital Elevation Model) loaded pre-flight. Maintaining a consistent 80 m AGL keeps your GSD (Ground Sample Distance) uniform, which directly impacts photogrammetry accuracy.

2. Ignoring wind shear near large structures. Tall grandstands and building faces create mechanical turbulence. Reduce flight speed to ≤5 m/s when operating within 2× the height of any structure. The M4T's redundant IMU and flight controllers handle gusts well, but abrupt corrections degrade image sharpness.

3. Using a single emissivity value across the entire venue. As covered above, emissivity varies by material. A blanket 0.95 setting—commonly used as a "default"—will underreport temperatures on metal surfaces by as much as 8°C. Segment your thermal survey into material zones.

4. Neglecting to encrypt stored data. The M4T encrypts transmission via AES-256, but your microSD card is unencrypted by default. Enable onboard storage encryption through DJI Pilot 2 settings to maintain end-to-end data security, especially when monitoring sensitive or government-affiliated venues.

5. Skipping post-flight calibration checks. After every mission, verify your thermal sensor's internal calibration by pointing it at a known-temperature blackbody source or a surface with a recently measured contact-thermocouple reading. Drift of more than ±2°C indicates the sensor needs factory recalibration.

Frequently Asked Questions

Can the Matrice 4T perform photogrammetry and thermal inspection in a single flight?

Yes. The M4T's tri-sensor gimbal captures wide-angle visual, zoom, and thermal data simultaneously. You can generate a photogrammetry-grade orthomosaic from the 56 MP wide camera while simultaneously recording radiometric thermal imagery. Post-processing software like DJI Terra or Pix4D can align both datasets using matching GPS timestamps, producing a fused thermal-visual 3D model without requiring a second flight.

What regulatory approvals are needed for BVLOS venue monitoring with the M4T?

Requirements vary by jurisdiction. In the EU, you will typically need a SORA (Specific Operations Risk Assessment) approval under the Specific Category. In the United States, a Part 107 BVLOS waiver from the FAA is required. The M4T's ADS-B receiver, redundant flight systems, and O3 transmission reliability strengthen waiver applications. Always consult your national aviation authority and begin the approval process at least 30–60 days before your planned operation.

How does the M4T's thermal sensitivity compare to dedicated handheld thermal cameras?

The M4T's ≤30 mK NETD is comparable to mid-tier handheld FLIR cameras like the FLIR T540 (≤30 mK) and surpasses many entry-level models (≤50 mK). While high-end handheld units like the FLIR T865 achieve ≤20 mK, the M4T offers the massive advantage of aerial perspective—covering an entire venue rooftop in minutes rather than hours of manual walking inspections. For most venue monitoring applications, the M4T's thermal sensitivity is more than sufficient to detect insulation failures, moisture intrusion, electrical hotspots, and HVAC anomalies.
